RR-10

Products specifications

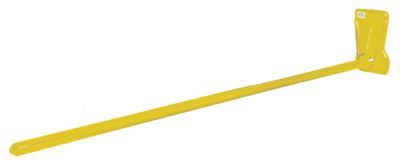

cat	Model RR - Manual Release Unit
Product Features	· Rope Guide allows rigging to be released when hook is either <br /> above or beside the operator. If hook is located below the operator <br /> please see Upward Pull option on page E.20. <br /> · Designed for rugged outdoor use. <br /> · Easy to use - simply rig, lift, set and release. <br /> · LOCK & CAPTURE feature engages with very little load weight (see Minimum Load in chart below). <br /> · Rated load capacity can be lifted from either Lift Arm or the lower Strip Sling Hook. Do not <br /> exceed rated capacity of hook. <br /> · Oversized bail for easy mounting on crane hook - 5, 10 & 15 ton units provided with fixed bails. <br /> · Designed and manufactured to ASME standards. <br /> 1 Ton Unit Shown <br /> Patent No. 7,380,849 <br />
Bail Dimension (inches) A	2
Bail Dimension (inches) B	4
Bail Dimension (inches) C	7
Bail Dimension (inches) T	1.25
Minimum Load(lbs) Basket	230
Minimum Load(lbs) Choker	115
Rated Cap.(tons)	10
Dimension (inches) D	2.25
Dimension (inches) E	1.75
Dimension (inches) F	2
Dimension (inches) G	6.31
Dimension (inches) J	11
Dimension (inches) K	41.16
Dimension (inches) L	32.13
Dimension (inches) O	2.08
Weight (lbs)	200
Recommended Lifting Slings RopeDia.(inches)	1-1/4
Maximum Allowable Rigging Weight (lbs.) Basket	100
Maximum Allowable Rigging Weight (lbs.) Choker	50
